Resilience Against Reverse Engineering and Tampering

Einleitung

Übersicht

Maßnahmen wie Code-Verschleierung, Anti-Debugging, Anti-Manipulation und Runtime Application Self-Protection (RASP) erhöhen die Widerstandsfähigkeit einer App

  • Das Fehlen dieser Maßnahmen stellt nicht von sich aus eine Schwachstelle dar.
  • Resilienzmaßnahmen bieten zusätzlichen Schutz gegen bedrohungsspezifische Angriffe.

Geschäftliche Perspektive

Hilft, Risiken zu mindern wie:

  • Diebstahl oder Kompromittierung von proprietären Algorithmen, Geschäftsgeheimnissen, Kundendaten, KI- oder Machine-Learning-Modellen
  • Betrug, Schummeln oder Umsatzverlust in Online-Spielen, Finanz-Apps oder Abomodellen
  • Rechtliche und reputationsschädigende Folgen aufgrund von Vertrags- oder Regelverstößen
  • Schädigung des Markenimages durch negative Publicity oder Unzufriedenheit der Kunden

Transparenz und offene Prüfperspektive

In einigen Kontexten, wie z.B. bei Regierungs-, Gesundheits- oder anderen Anwendungen von öffentlichem Interesse, sind Resilienzmaßnahmen möglicherweise aus mehreren Gründen nicht ideal:

  • Sie verringern die Transparenz darüber, was die kompilierte Anwendung tut.
  • Unabhängige Überprüfung der kompilierten Anwendung ist schwieriger.
  • Die Vielfalt der OS kann durch false positives zum Ausschluss legitimer Benutzer führen.

Verification Controls

MASVS-RESILIENCE-1

The app validates the integrity of the platform.

MASVS-RESILIENCE-2

The app implements anti-tampering mechanisms.

MASVS-RESILIENCE-3

The app implements anti-static analysis mechanisms.

MASVS-RESILIENCE-4

The app implements anti-dynamic analysis techniques.

Weakness Enumeration

MASVS-RESILIENCE-1

L2

  • MASWE-0008: Missing Device Secure Lock Verification Implementation

R

  • MASWE-0097: Root/Jailbreak Detection Not Implemented
  • MASWE-0098: App Virtualization Environment Detection Not Implemented
  • MASWE-0099: Emulator Detection Not Implemented
  • MASWE-0100: Device Attestation Not Implemented

MASVS-RESILIENCE-2

R

MASVS-RESILIENCE-3

R

R

  • MASWE-0094: Non-Production Resources Not Removed
  • MASWE-0095: Code That Disables Security Controls Not Removed
  • MASWE-0096: Data Sent Unencrypted Over Encrypted Connections

MASVS-RESILIENCE-4

Testing Guide

MASVS-RESILIENCE-1

MASVS-RESILIENCE-2

MASVS-RESILIENCE-3

MASVS-RESILIENCE-4

Beispiel MASTG-DEMO-0021

Ausgangspunkt Demo

Demo MASTG-DEMO-0021 kann in Test MASTG-TEST-0240 genutzt werden. Dieser testet Weakness MASWE-0097 zu Control MASVS-RESILIENCE-1.

MASTG-DEMO-0021

import SwiftUI

class MastgTest {
    static func mastgTest(completion: @escaping (String) -> Void) {
        let jailbreakDetails = JailbreakDetector.isDeviceJailbroken()
        completion(jailbreakDetails)
    }
}

class JailbreakDetector {
    static func isDeviceJailbroken() -> String {
        // Check if running on a simulator
        if DeviceUtils.isSimulator() {
            let simulatorName = ProcessInfo.processInfo.environment["SIMULATOR_DEVICE_NAME"] ?? "Unknown Simulator"
            return "Warning: Running on a simulator (\(simulatorName)).\n\nProof:\n\n" + collectJailbreakProof()
        }

        // Collect jailbreak proofs
        let proof = collectJailbreakProof()
        if proof.isEmpty {
            return "Jailbreak: False\n\nNo signs of a jailbreak detected."
        } else {
            return "Jailbreak: True\n\nProof:\n\n" + proof
        }
    }

    private static func collectJailbreakProof() -> String {
        var reasons = [String]()

        // Check 1: Common jailbreak files and directories
        let jailbreakPaths = [
            "/Applications/Cydia.app",
            "/Applications/Sileo.app",
            "/Applications/Zebra.app",
            "/Applications/Installer.app",
            "/Library/MobileSubstrate/MobileSubstrate.dylib",
            "/usr/libexec/cydia",
            "/usr/libexec/ssh-keysign",
            "/usr/sbin/sshd",
            "/usr/bin/ssh",
            "/var/cache/apt",
            "/var/lib/apt",
            "/var/lib/cydia",
            "/var/log/syslog",
            "/bin/bash",
            "/bin/sh",
            "/etc/apt",
            "/private/var/lib/undecimus",
            "/private/var/root/Library/PreferenceLoader/Preferences",
            "/private/etc/apt"
        ]

        for path in jailbreakPaths {
            if FileManager.default.fileExists(atPath: path) {
                reasons.append("Detected jailbreak file or directory at \(path)")
            }
        }

        // Check 2: Custom URL schemes
        let urlSchemes = [
            "cydia://",
            "sileo://",
            "zebra://",
            "filza://"
        ]

        for scheme in urlSchemes {
            if let url = URL(string: scheme), UIApplication.shared.canOpenURL(url) {
                reasons.append("Able to open suspicious URL scheme: \(scheme)")
            }
        }

        // Check 3: Suspicious environment variables
        let suspiciousEnvVars = [
            "DYLD_INSERT_LIBRARIES",
            "DYLD_FRAMEWORK_PATH",
            "DYLD_LIBRARY_PATH"
        ]

        for envVar in suspiciousEnvVars {
            if ProcessInfo.processInfo.environment[envVar] != nil {
                reasons.append("Suspicious environment variable detected: \(envVar)")
            }
        }

        // Check 4: Write access to system paths
        let paths = [
            "/private/jailbreak.txt",
            "/private/var/mobile/Library/jailbreak.txt"
        ]

        for path in paths {
            do {
                try "test".write(toFile: path, atomically: true, encoding: .utf8)
                try FileManager.default.removeItem(atPath: path)
                reasons.append("Write access detected at \(path)")
            } catch {
                continue
            }
        }

        return reasons.joined(separator: "\n")
    }
}

class DeviceUtils {
    static func isSimulator() -> Bool {
        return ProcessInfo.processInfo.environment["SIMULATOR_DEVICE_NAME"] != nil
    }
}

Weakness und Control

MASWE-0097

Root/Jailbreak Detection Not Implemented

MASVS-RESILIENCE-1

The app validates the integrity of the platform.

MASTG-TEST-0200

Run a static analysis tool such as radare2 for iOS on the app binary looking for common jailbreak detection checks.

Radare Script

e asm.bytes=false
e scr.color=false
e asm.var=false

?e

?e search for jailbreak path:

/ /Applications/Cydia.app
/ /Applications/Sileo.app
/ /Applications/Zebra.app
/ /usr/sbin/sshd
/ /usr/bin/ssh
/ /var/cache/apt
/ /var/lib/apt
/ /var/lib/cydia
/ /var/log/syslog
/ /bin/bash
/ /bin/sh
/ /etc/apt
/ /private/jailbreak.txt
/ /private/var/mobile/Library/jailbreak.txt

?e

?e search for urlSchemes:

/ cydia://
/ sileo://
/ zebra://
/ filza://

?e

?e search for suspiciousEnvVars:

/ DYLD_INSERT_LIBRARIES
/ DYLD_FRAMEWORK_PATH
/ DYLD_LIBRARY_PATH

?e

?e Searching for Jailbreak output:

iz~+jail


?e

?e xrefs to Jailbreak strings:
axt 0x10011db00

?e

?e Disassembled Jailbreak function:

pdf @ 0x100008c14

Ergebnis

search for jailbreak path:
0x10011d850 hit4_0 "4/Applications/Cydia.app/Applic"
0x10011d870 hit5_0 "dia.app/Applications/Sileo.app/Applic"
0x10011d890 hit6_0 "leo.app/Applications/Zebra.app/Applic"
0x1001a0d68 hit7_0 "@/usr/sbin/sshd/usr/bin/ssh"
0x1001a0d78 hit8_0 "/usr/sbin/sshd/usr/bin/ssh/var/cache/a"
0x1001a0d88 hit9_0 "/usr/bin/ssh/var/cache/apt/var/lib/apt"
0x1001a0d98 hit10_0 "/var/cache/apt/var/lib/apt/var/lib/cyd"
0x1001a0da8 hit11_0 "/var/lib/apt/var/lib/cydia/var/log/syslo"
0x1001a0db8 hit12_0 "/var/lib/cydia/var/log/syslog/bin/bash"
0x1001a0dc8 hit13_0 "/var/log/syslog/bin/bash/bin/sh"
0x1001a0dd8 hit14_0 "/bin/bash/bin/sh/etc/ap"
0x1001a0de8 hit15_0 "/bin/sh/etc/apt"
0x10011d9a8 hit15_1 "/private/etc/apt"
0x10011da20 hit16_0 "H/private/jailbreak.txt/priva"
0x10011da40 hit17_0 "ak.txt/private/var/mobile/Library/jailbreak.txt_TtC10MAS"

search for urlSchemes:
0x1001a0e50 hit18_0 "cydia://sileo://"
0x1001a0e60 hit19_0 "cydia://sileo://zebra://"
0x1001a0e70 hit20_0 "sileo://zebra://filza://"
0x1001a0e80 hit21_0 "zebra://filza://"

search for suspiciousEnvVars:
0x10011d9c0 hit22_0 "DYLD_INSERT_LIBRARIESDYLD_"
0x10011d9e0 hit23_0 "ARIESDYLD_FRAMEWORK_PATHDYL"
0x10011da00 hit24_0 "ATHDYLD_LIBRARY_PATH/"

Searching for Jailbreak output:
13   0x0011da20  0x10011da20 22  23   4.__TEXT.__cstring         ascii   /private/jailbreak.txt
14   0x0011da40  0x10011da40 41  42   4.__TEXT.__cstring         ascii   /private/var/mobile/Library/jailbreak.txt
16   0x0011da90  0x10011da90 35  36   4.__TEXT.__cstring         ascii   _TtC10MASTestApp17JailbreakDetector
19   0x0011db00  0x10011db00 25  26   4.__TEXT.__cstring         ascii   Jailbreak: True\n\nProof:\n\n
20   0x0011db20  0x10011db20 51  52   4.__TEXT.__cstring         ascii   Jailbreak: False\n\nNo signs of a jailbreak detected.
26   0x0011dc30  0x10011dc30 40  41   4.__TEXT.__cstring         ascii   Detected jailbreak file or directory at
2    0x00134020  0x100134020 17  18   5.__TEXT.__const           ascii   JailbreakDetector

xrefs to Jailbreak strings:
sym.func.100008c14 0x100008dc8 [STRN:-w-] add x9, x9, str.Jailbreak:_True_n_nProof:_n_n

Disassembled Jailbreak function:
            ; CALL XREF from sym.func.100009ef8 @ 0x100009f28(x)
┌ 724: sym.func.100008c14 (int64_t arg_0h, int64_t arg_60h, void *arg0);
│           0x100008c14      sub sp, sp, 0x60
│           0x100008c18      stp x26, x25, [var_10h]
│           0x100008c1c      stp x24, x23, [var_20h]
│           0x100008c20      stp x22, x21, [var_30h]
│           0x100008c24      stp x20, x19, [var_40h]
│           0x100008c28      stp x29, x30, [var_50h]
│           0x100008c2c      add x29, var_50h
│           0x100008c30      movz x22, 0x11
│           0x100008c34      movk x22, 0xd000, lsl 48
│           0x100008c38      adrp x8, segment.__DATA                   ; 0x1001a0000
│           0x100008c3c      ldr x0, [x8, 0xbe0]                       ; 0xcf ; 207 ; void *arg0
│           0x100008c40      bl sym.imp.objc_opt_self                  ; void *objc_opt_self(void *arg0)
│           0x100008c44      mov x19, x0
│           0x100008c48      adrp x23, segment.__DATA                  ; 0x1001a0000
│           0x100008c4c      ldr x1, [x23, 0xba0]                      ; 0xde ; 222 ; char *selector
│           0x100008c50      bl sym.imp.objc_msgSend                   ; void *objc_msgSend(void *instance, char *selector)
│           0x100008c54      mov x29, x29
│           0x100008c58      bl sym.imp.objc_retainAutoreleasedReturnValue ; void objc_retainAutoreleasedReturnValue(void *instance)
│           0x100008c5c      mov x20, x0
│           0x100008c60      adrp x24, segment.__DATA                  ; 0x1001a0000
│           0x100008c64      ldr x1, [x24, 0xba8]                      ; 0xdf ; 223 ; char *selector
│           0x100008c68      bl sym.imp.objc_msgSend                   ; void *objc_msgSend(void *instance, char *selector)
│           0x100008c6c      mov x29, x29
│           0x100008c70      bl sym.imp.objc_retainAutoreleasedReturnValue ; void objc_retainAutoreleasedReturnValue(void *instance)
│           0x100008c74      mov x21, x0
│           0x100008c78      mov x0, x20                               ; void *instance
│           0x100008c7c      bl sym.imp.objc_release                   ; void objc_release(void *instance)
│           0x100008c80      adrp x1, reloc.associated_conformance_descriptor_for_Foundation.DataProtocol.Swift.Collection.SubSequence:_Foundation.DataProtocol ; 0x100188000
│           0x100008c84      ldr x1, [x1, 0x890]                       ; 0xc8 ; 200
│           0x100008c88      adrp x3, reloc.associated_conformance_descriptor_for_Foundation.DataProtocol.Swift.Collection.SubSequence:_Foundation.DataProtocol ; 0x100188000
│           0x100008c8c      ldr x3, [x3, 0x898]                       ; 0xca ; 202
│           0x100008c90      mov x0, x21
│           0x100008c94      mov x2, x1
│           0x100008c98      bl sym static (extension in Foundation):Swift.Dictionary._unconditionallyBridgeFromObjectiveC(Swift.Optional<__C.NSDictionary>) -> Swift.Dictionary<A, B> ; sym.imp.static__extension_in_Foundation_:Swift.Dictionary._unconditionallyBridgeFromObjectiveC_Swift.Optional___C.NSDictionary______Swift.Dictionary_A__B_
│           0x100008c9c      mov x20, x0
│           0x100008ca0      mov x0, x21                               ; void *instance
│           0x100008ca4      bl sym.imp.objc_release                   ; void objc_release(void *instance)
│           0x100008ca8      ldr x8, [x20, 0x10]                       ; 0xdb ; 219
│       ┌─< 0x100008cac      cbz x8, 0x100008d9c
│       │   0x100008cb0      mov x0, x20                               ; void *arg0
│       │   0x100008cb4      bl sym.imp.swift_bridgeObjectRetain       ; void *swift_bridgeObjectRetain(void *arg0)
│       │   0x100008cb8      add x0, x22, 4                            ; int64_t arg1
│       │   0x100008cbc      adrp x8, sym.imp.__error                  ; 0x10011d000
│       │   0x100008cc0      add x8, x8, 0xae0                         ; 0x10011dae0 ; "SIMULATOR_DEVICE_NAME"
│       │   0x100008cc4      sub x25, x8, 0x20
│       │   0x100008cc8      orr x1, x25, 0x8000000000000000           ; int64_t arg2
│       │   0x100008ccc      bl sym.func.100008070
│       │   0x100008cd0      mov x21, x1
│       │   0x100008cd4      mov x0, x20                               ; void *arg0
│       │   0x100008cd8      bl sym.imp.swift_bridgeObjectRelease      ; void swift_bridgeObjectRelease(void *arg0)
│      ┌──< 0x100008cdc      tbz w21, 0, 0x100008d9c
│      ││   0x100008ce0      mov x0, x20                               ; void *arg0
│      ││   0x100008ce4      bl sym.imp.swift_bridgeObjectRelease      ; void swift_bridgeObjectRelease(void *arg0)
│      ││   0x100008ce8      ldr x1, [x23, 0xba0]                      ; 0xde ; 222 ; char *selector
│      ││   0x100008cec      mov x0, x19                               ; void *instance
│      ││   0x100008cf0      bl sym.imp.objc_msgSend                   ; void *objc_msgSend(void *instance, char *selector)
│      ││   0x100008cf4      mov x29, x29
│      ││   0x100008cf8      bl sym.imp.objc_retainAutoreleasedReturnValue ; void objc_retainAutoreleasedReturnValue(void *instance)
│      ││   0x100008cfc      mov x19, x0
│      ││   0x100008d00      ldr x1, [x24, 0xba8]                      ; 0xdf ; 223 ; char *selector
│      ││   0x100008d04      bl sym.imp.objc_msgSend                   ; void *objc_msgSend(void *instance, char *selector)
│      ││   0x100008d08      mov x29, x29
│      ││   0x100008d0c      bl sym.imp.objc_retainAutoreleasedReturnValue ; void objc_retainAutoreleasedReturnValue(void *instance)
│      ││   0x100008d10      mov x21, x0
│      ││   0x100008d14      mov x0, x19                               ; void *instance
│      ││   0x100008d18      bl sym.imp.objc_release                   ; void objc_release(void *instance)
│      ││   0x100008d1c      adrp x1, reloc.associated_conformance_descriptor_for_Foundation.DataProtocol.Swift.Collection.SubSequence:_Foundation.DataProtocol ; 0x100188000
│      ││   0x100008d20      ldr x1, [x1, 0x890]                       ; 0xc8 ; 200
│      ││   0x100008d24      adrp x3, reloc.associated_conformance_descriptor_for_Foundation.DataProtocol.Swift.Collection.SubSequence:_Foundation.DataProtocol ; 0x100188000
│      ││   0x100008d28      ldr x3, [x3, 0x898]                       ; 0xca ; 202
│      ││   0x100008d2c      mov x0, x21
│      ││   0x100008d30      mov x2, x1
│      ││   0x100008d34      bl sym static (extension in Foundation):Swift.Dictionary._unconditionallyBridgeFromObjectiveC(Swift.Optional<__C.NSDictionary>) -> Swift.Dictionary<A, B> ; sym.imp.static__extension_in_Foundation_:Swift.Dictionary._unconditionallyBridgeFromObjectiveC_Swift.Optional___C.NSDictionary______Swift.Dictionary_A__B_
│      ││   0x100008d38      mov x20, x0
│      ││   0x100008d3c      mov x0, x21                               ; void *instance
│      ││   0x100008d40      bl sym.imp.objc_release                   ; void objc_release(void *instance)
│      ││   0x100008d44      ldr x8, [x20, 0x10]                       ; 0xdb ; 219
│      ││   0x100008d48      adrp x9, sym.imp.__error                  ; 0x10011d000
│      ││   0x100008d4c      add x9, x9, 0xb60                         ; 0x10011db60 ; "Unknown Simulator"
│      ││   0x100008d50      sub x9, x9, 0x20
│      ││   0x100008d54      orr x19, x9, 0x8000000000000000
│     ┌───< 0x100008d58      cbz x8, 0x100008e0c
│     │││   0x100008d5c      mov x0, x20                               ; void *arg0
│     │││   0x100008d60      bl sym.imp.swift_bridgeObjectRetain       ; void *swift_bridgeObjectRetain(void *arg0)
│     │││   0x100008d64      add x0, x22, 4                            ; int64_t arg1
│     │││   0x100008d68      orr x1, x25, 0x8000000000000000           ; int64_t arg2
│     │││   0x100008d6c      bl sym.func.100008070
│     │││   0x100008d70      movz x21, 0x11
│     │││   0x100008d74      movk x21, 0xd000, lsl 48
│    ┌────< 0x100008d78      tbz w1, 0, 0x100008d90
│    ││││   0x100008d7c      ldr x8, [x20, 0x38]                       ; 0xdb ; 219
│    ││││   0x100008d80      add x8, x8, x0, lsl 4
│    ││││   0x100008d84      ldp x21, x19, [x8]
│    ││││   0x100008d88      mov x0, x19                               ; void *arg0
│    ││││   0x100008d8c      bl sym.imp.swift_bridgeObjectRetain       ; void *swift_bridgeObjectRetain(void *arg0)
│    └────> 0x100008d90      mov x0, x20                               ; void *arg0
│     │││   0x100008d94      bl sym.imp.swift_bridgeObjectRelease      ; void swift_bridgeObjectRelease(void *arg0)
│    ┌────< 0x100008d98      b 0x100008e14
│    ││└└─> 0x100008d9c      mov x0, x20                               ; void *arg0
│    ││     0x100008da0      bl sym.imp.swift_bridgeObjectRelease      ; void swift_bridgeObjectRelease(void *arg0)
│    ││     0x100008da4      bl sym.func.1000082b4
│    ││     0x100008da8      mov x19, x1
│    ││     0x100008dac      ubfx x8, x1, 0x38, 4
│    ││     0x100008db0      and x9, x0, 0xffffffffffff
│    ││     0x100008db4      tst x1, 0x2000000000000000
│    ││     0x100008db8      csel x8, x9, x8, eq
│    ││ ┌─< 0x100008dbc      cbz x8, 0x100008dec
│    ││ │   0x100008dc0      add x8, x22, 8
│    ││ │   0x100008dc4      adrp x9, sym.imp.__error                  ; 0x10011d000
│    ││ │   0x100008dc8      add x9, x9, 0xb00                         ; 0x10011db00 ; "Jailbreak: True\n\nProof:\n\n"
│    ││ │   0x100008dcc      sub x9, x9, 0x20
│    ││ │   0x100008dd0      orr x9, x9, 0x8000000000000000
│    ││ │   0x100008dd4      stp x8, x9, [sp]
│    ││ │   0x100008dd8      mov x20, sp
│    ││ │   0x100008ddc      mov x1, x19
│    ││ │   0x100008de0      bl sym Swift.String.append(Swift.String) -> () ; sym.imp.Swift.String.append_Swift.String_______
│    ││ │   0x100008de4      mov x0, x19
│    ││┌──< 0x100008de8      b 0x100008ec4
│    │││└─> 0x100008dec      mov x0, x19                               ; void *arg0
│    │││    0x100008df0      bl sym.imp.swift_bridgeObjectRelease      ; void swift_bridgeObjectRelease(void *arg0)
│    │││    0x100008df4      add x0, x22, 0x22
│    │││    0x100008df8      adrp x8, sym.imp.__error                  ; 0x10011d000
│    │││    0x100008dfc      add x8, x8, 0xb20                         ; 0x10011db20 ; "Jailbreak: False\n\nNo signs of a jailbreak detected."
│    │││    0x100008e00      sub x8, x8, 0x20
│    │││    0x100008e04      orr x1, x8, 0x8000000000000000
│    │││┌─< 0x100008e08      b 0x100008ecc
│    │└───> 0x100008e0c      movz x21, 0x11
│    │ ││   0x100008e10      movk x21, 0xd000, lsl 48
│    │ ││   ; CODE XREF from sym.func.100008c14 @ 0x100008d98(x)
│    └────> 0x100008e14      mov x0, x20                               ; void *arg0
│      ││   0x100008e18      bl sym.imp.swift_bridgeObjectRelease      ; void swift_bridgeObjectRelease(void *arg0)
│      ││   0x100008e1c      movz x8, 0xe000, lsl 48
│      ││   0x100008e20      stp xzr, x8, [sp]
│      ││   0x100008e24      mov x20, sp
│      ││   0x100008e28      movz w0, 0x2f                             ; '/'
│      ││   0x100008e2c      bl sym Swift._StringGuts.grow(Swift.Int) -> () ; sym.imp.Swift._StringGuts.grow_Swift.Int_______
│      ││   0x100008e30      ldr x0, [arg0]                            ; 0x4 ; 4 ; void *arg0
│      ││   0x100008e34      bl sym.imp.swift_bridgeObjectRelease      ; void swift_bridgeObjectRelease(void *arg0)
│      ││   0x100008e38      add x8, x22, 0x10
│      ││   0x100008e3c      adrp x9, sym.imp.__error                  ; 0x10011d000
│      ││   0x100008e40      add x9, x9, 0xb80                         ; 0x10011db80 ; "Warning: Running on a simulator ("
│      ││   0x100008e44      sub x9, x9, 0x20
│      ││   0x100008e48      orr x9, x9, 0x8000000000000000
│      ││   0x100008e4c      stp x8, x9, [sp]
│      ││   0x100008e50      mov x20, sp
│      ││   0x100008e54      mov x0, x21
│      ││   0x100008e58      mov x1, x19
│      ││   0x100008e5c      bl sym Swift.String.append(Swift.String) -> () ; sym.imp.Swift.String.append_Swift.String_______
│      ││   0x100008e60      mov x0, x19                               ; void *arg0
│      ││   0x100008e64      bl sym.imp.swift_bridgeObjectRelease      ; void swift_bridgeObjectRelease(void *arg0)
│      ││   0x100008e68      mov x20, sp
│      ││   0x100008e6c      movz x0, 0x2e29                           ; ').'
│      ││   0x100008e70      movk x0, 0xa0a, lsl 16                    ; '\n\n'
│      ││   0x100008e74      movk x0, 0x7250, lsl 32                   ; 'Pr'
│      ││   0x100008e78      movk x0, 0x6f6f, lsl 48                   ; 'oo'
│      ││   0x100008e7c      movz x1, 0x3a66                           ; 'f:'
│      ││   0x100008e80      movk x1, 0xa0a, lsl 16                    ; '\n\n'
│      ││   0x100008e84      movk x1, 0xec00, lsl 48
│      ││   0x100008e88      bl sym Swift.String.append(Swift.String) -> () ; sym.imp.Swift.String.append_Swift.String_______
│      ││   0x100008e8c      ldp x20, x19, [sp]
│      ││   0x100008e90      bl sym.func.1000082b4
│      ││   0x100008e94      mov x21, x0
│      ││   0x100008e98      mov x22, x1
│      ││   0x100008e9c      stp x20, x19, [sp]
│      ││   0x100008ea0      mov x0, x19                               ; void *arg0
│      ││   0x100008ea4      bl sym.imp.swift_bridgeObjectRetain       ; void *swift_bridgeObjectRetain(void *arg0)
│      ││   0x100008ea8      mov x20, sp
│      ││   0x100008eac      mov x0, x21
│      ││   0x100008eb0      mov x1, x22
│      ││   0x100008eb4      bl sym Swift.String.append(Swift.String) -> () ; sym.imp.Swift.String.append_Swift.String_______
│      ││   0x100008eb8      mov x0, x19                               ; void *arg0
│      ││   0x100008ebc      bl sym.imp.swift_bridgeObjectRelease      ; void swift_bridgeObjectRelease(void *arg0)
│      ││   0x100008ec0      mov x0, x22
│      ││   ; CODE XREF from sym.func.100008c14 @ 0x100008de8(x)
│      └──> 0x100008ec4      bl sym.imp.swift_bridgeObjectRelease      ; void swift_bridgeObjectRelease(void *arg0)
│       │   0x100008ec8      ldp x0, x1, [sp]
│       │   ; CODE XREF from sym.func.100008c14 @ 0x100008e08(x)
│       └─> 0x100008ecc      ldp x29, x30, [var_50h]
│           0x100008ed0      ldp x20, x19, [var_40h]
│           0x100008ed4      ldp x22, x21, [var_30h]
│           0x100008ed8      ldp x24, x23, [var_20h]
│           0x100008edc      ldp x26, x25, [var_10h]
│           0x100008ee0      add sp, arg_60h
└           0x100008ee4      ret

Beispiel Jailbreak Detection (Flutter)

flutter_jailbreak_detection

  • flutter_jailbreak_detection integriert typische Mechanismen von iOS und Android
  • Beispielapp vorhanden in GitHub
  • Code ist sehr einfach nutzbar

Beispiel

import 'package:flutter_jailbreak_detection/flutter_jailbreak_detection.dart';
import 'package:mas_test_app/demo_results.dart';

class MastgTest {
  bool? _jailbroken;
  bool? _developerMode;

  DemoResults mastgTest() {
    DemoResults r = DemoResults(demoId: '0021');
    try {
      initPlatformState();
      r.add(
        Status.pass,
        "Jailbroken: $_jailbroken, Developer Mode: $_developerMode.",
      );
    } catch (e) {
      r.add(Status.error, e.toString());
    }
    return r;
  }

  // Platform messages are asynchronous, so we initialize in an async method.
  Future<void> initPlatformState() async {
    bool jailbroken;
    bool developerMode;
    // Platform messages may fail, so we use a try/catch PlatformException.
    try {
      jailbroken = await FlutterJailbreakDetection.jailbroken;
      developerMode = await FlutterJailbreakDetection.developerMode;
    } on Exception {
      jailbroken = true;
      developerMode = true;
    }
    _jailbroken = jailbroken;
    _developerMode = developerMode;
  }
}

Test-Ergebnis


search for jailbreak path:

search for urlSchemes:

search for suspiciousEnvVars:

Searching for Jailbreak output:
7   0x00006b10  0x100006b10 31  32   5.__TEXT.__cstring        ascii FlutterJailbreakDetectionPlugin
7   0x1000081a8 0x1000081a8 31  32                             ascii cstr.FlutterJailbreakDetectionPlugin

xrefs to Jailbreak strings:

Disassembled Jailbreak function:

Beispiel - App Integrity (Flutter)

MASWE-0104 und MASWE-0106

MASWE-0104

App Integrity Not Verified

MASWE-0106

Official Store Verification Not Implemented

MASVS-RESILIENCE-2

The app implements anti-tampering mechanisms.

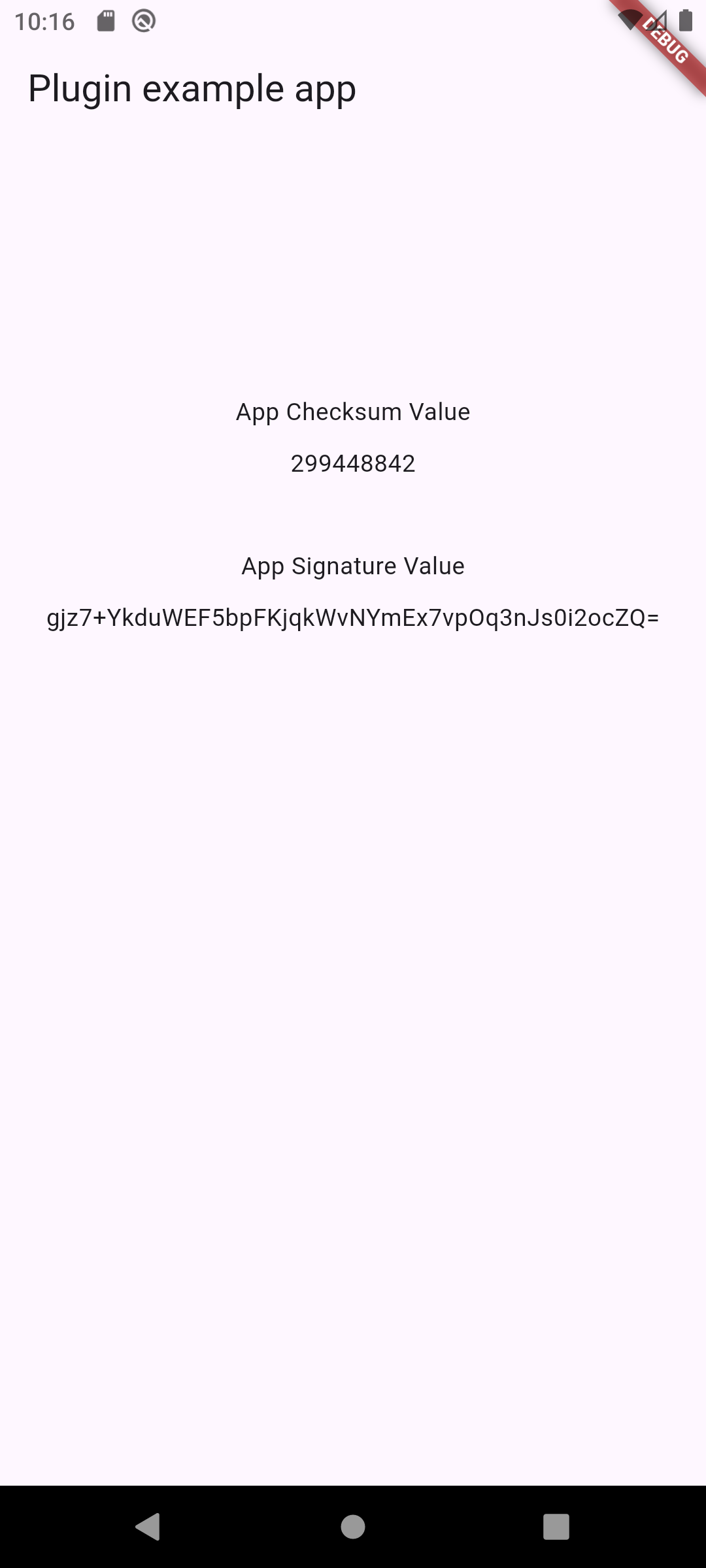

app_integrity_checker

  • Paket app_integrity_checker kann Checksumme und Signatur auslesen
  • Beide Werte sind nicht stabil genug, um clientseitig geprüft werden zu können
  • Serverseitige Überprüfung sinnvoll
  • Beispiel auf GitHub
  • Korrigierte Version: GitHub

Ergebnis

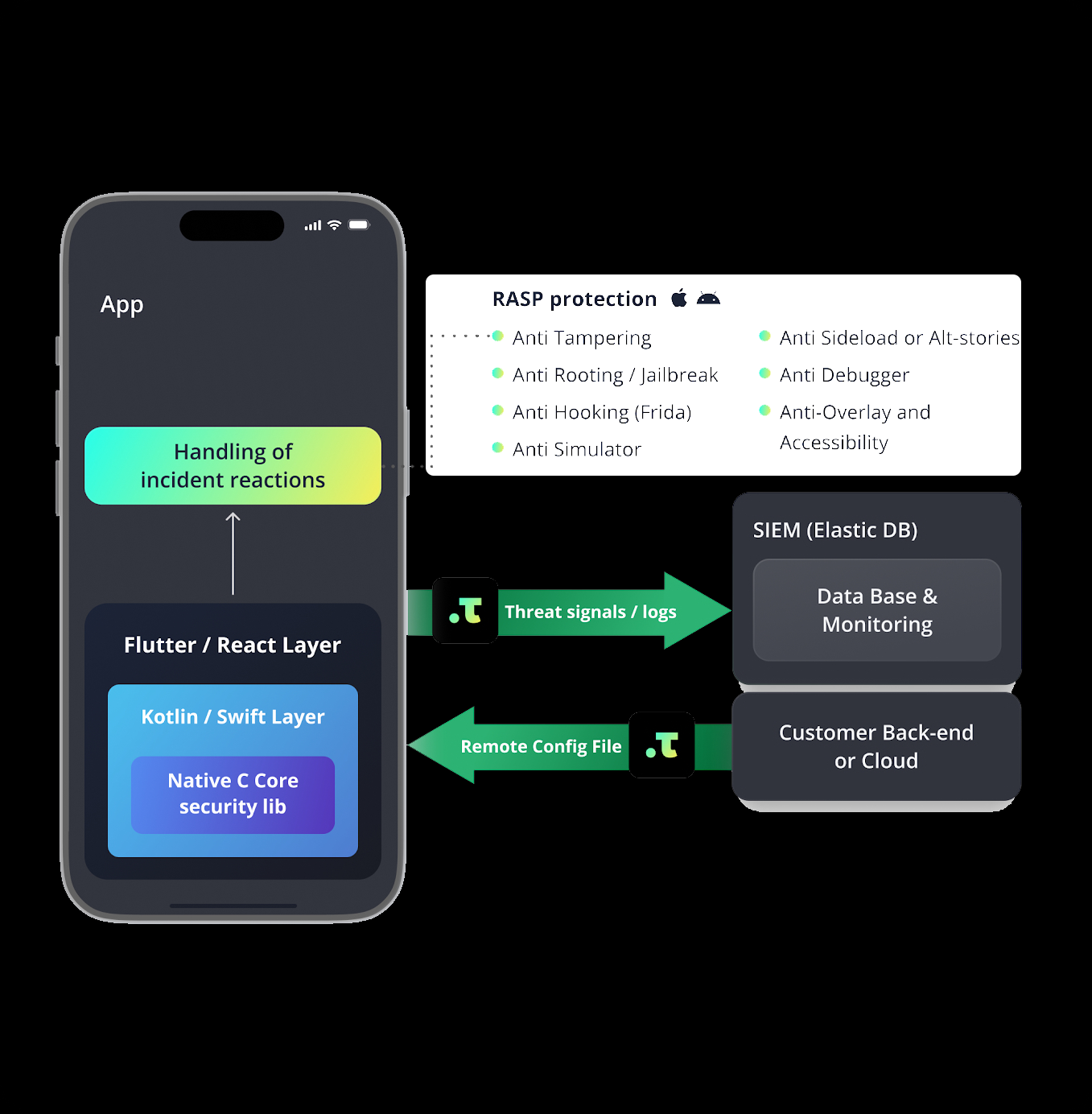

Beispiel - Talsec

RASP

  • Talsec ist kommerzieller Anbieter von RASP+ und .freeRASP
  • Auch weitere für Flutter nützlicher Produkte
  • Fokus liegt hier auf kostenlosen Paketen
